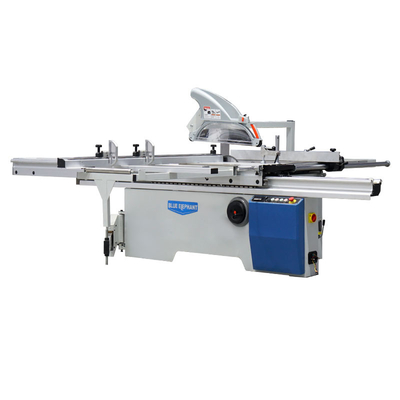

Horizontal Wood Slitter Woodworking Sliding Table Panel Saw With Good Precision For Home Or Furniture

1 Set
MOQ
$2,700.00(1 - 19 Sets) $1,800.00(>=20 Sets)
τιμή
Horizontal Wood Slitter Woodworking Sliding Table Panel Saw With Good Precision For Home Or Furniture
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Type: Panel Saw
Use: Woodworking
Style: Horizontal
Place of Origin: China
Warranty: 1 Year
Application: furniture industry or home use
Weight (KG): 800 KG
Key Selling Points: Easy to Operate
Max.Cutting Height at 90°(mm): 100mm
Max.Cutting Height at 45°(mm): 50mm
Max. Length of Workpiece (mm): 3100mm
Applicable Industries: Garment Shops, Manufacturing Plant
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
Dimension of sliding table: 800/3000/3200*375mm
Power of main saw spindle: 5.5kw
Diameter of main saw blade: 300*30
Power of grooving saw: 0.75kw
After-sales Service Provided: Field installation, commissioning and training
After Warranty Service: Video technical support
Βασικές πληροφορίες
Place of Origin: China
Πληρωμής & Αποστολής Όροι
Packaging Details: 1.Outside package:Standard marine export plywood case. 2.inner package:Stretch film and plastic film for humidity. We can package according to your requests.
Περιγραφή προϊόντων
Related Video
Product Features
This table saw is mainly used for longitudinal sectioning, cross-section or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board and plastic board to obtain a board that meets the specifications.
Technical Parameters
Dimensions
3200*2540*900mm
Sliding table size
3200*375mm
Sawtooth length
3000mm
Sawtooth width
1200mm
Sawtooth thickness
78mm
Main saw diameter
300mm
Scribing saw diameter
120mm
Main saw speed
4000/6000rpm
Scribing saw speed
7000rpm
Spindle diameter
30mm
Counter spindle diameter
20mm
Main motor power
5.5kw
Counter motor power
0.75kw
Saw blade angle
0-45°
Applied Industries
1. Wood furniture industry Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard，Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making. 3. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
